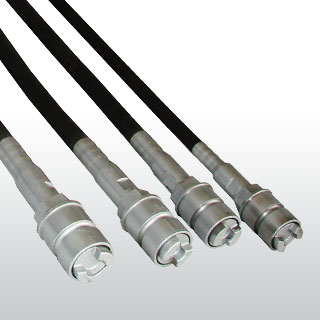

VIB28-60
Hoppt concrete vibrators with flexible shaft are built with the improved pendulum designed. This series of vibrators consist of 5 sizes, which are the VIB28, VIB32, VIB38, VIB45 and the VIB60. The concrete vibrators are suitable for use in all types of concrete and a wide variety o construction sites from small foundations to very large projects. Vibration parameters have been optimized leading to a maximum output.
Features and Benefits
|
HDU
Hoppt has got a range of reliable drive units to be used on the concrete vibrators and submersible pumps. Using the most reliable engines from Honda and Robin, and the option of 2 types of coupling allow the user to have great versatility in choosing the best units for site usage.
Features and Benefits
- Comes in 2 coupling options
- Hoppt Coupling
- Twin-claw Coupling
- Compatible with Hoppt's VIB and HFP
- Durable design for use at site
- Easy operations
VIB28-60
| Specifications for | VIB28 | VIB32 | VIB38 | VIB45 | VIB60 |
| Head dimension (mm) | 28 x 460 | 32 x 470 | 38 x 490 | 45 x 500 | 60 x 500 |
| Total weight (kg) | 18 | 18 | 19 | 20 | 21 |
| Frequency (Hz) | 163-208 | 163-208 | 163-208 | 163-208 | 163-208 |
| Shaft revolution (rpm) | 3 000 | 3 000 | 3 000 | 3 000 | 3 000 |
| Amplitude (mm) | 1.1 | 1.4 | 1.6 | 2.0 | 2.4 |
| Flexible shaft length (m) | 6 | 6 | 6 | 6 | 6 |
| Coupling Type | Hoppt / Twin-claw | Hoppt / Twin-claw | Hoppt / Twin-claw | Hoppt / Twin-claw | Hoppt / Twin-claw |
HDU
| Specifications for | HDU50 | HDU55 | HDU60 |
| Dimension - L x W x H (mm) | 420 x 520 x 445 | 420 x 520 x 445 | 420 x 520 x 445 |
| Weight (kg) | 30 | 26 | 28 |
| Engine Speed (rpm) | 4000 | 3600 | 4000 |
| Engine |
Honda GX160 @ 4.0 kW (5.5 hp) 4-Stroke Gasoline |
Robin EX17 @ 4.2kW (6.0 hp) 4-Stroke Gasoline |
Robin EY20-3C @ 3.7kW (5.0 hp) 4-Stroke Gasoline |
| Coupling Type | Hoppt / Twin-claw | Hoppt / Twin-claw | Hoppt / Twin-claw |
